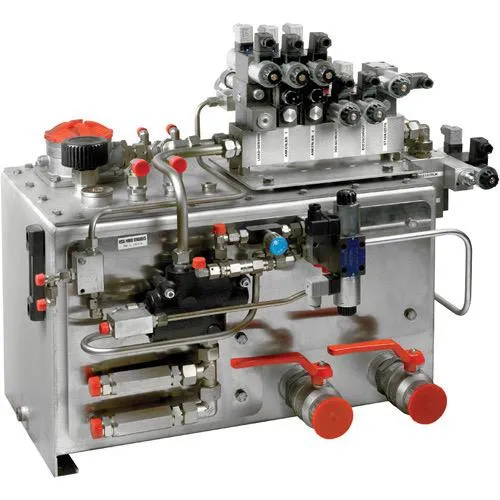

Large capacity tank with double 2" ball valves for double engines/pump system on larger vessels. Supplied with return filter, temperature/content meter, and low-level alarm. Serves as a basic tank for larger, custom-built hydraulic systems.

The lid of this hydraulic tank serves as the base plate for all control units required to operate the various hydraulic devices

VETUS supplies this hydraulic tank ready to use and preinstalled with all control units ordered

Additional control units can be supplied as separate components, if required

Tagged for connections

Mounted so that suction hose runs down to pumps

Connections for more than one pump

Mounted on Bulkhead, shelf or platform built by installer or OEM

Valves mounted on lid for convenience

Space for the tank must be planned and reserved in the engine room, adjacent to the pumps

Other Details:

Weight: 68kg
Total height: 580mm
Wide: 730 x 600mm
Volt: 24 (12 on request)
Vibration dampers (ordered separately): HT3010 (set of 4)
Height: 30mm
Material body: Stainless steel (AISI 316)
